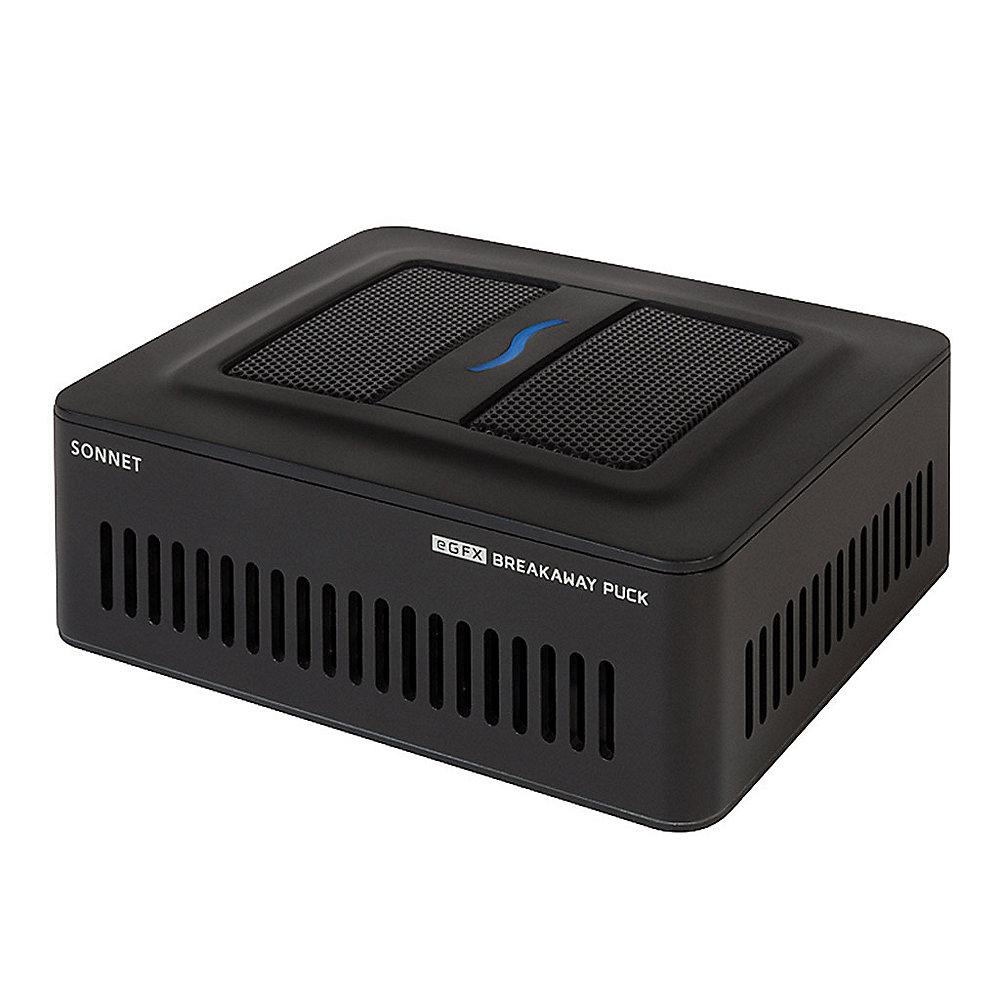

Sonnet eGFX Breakaway Puck Radeon RX

Form Factor Portable external GPU system

Video Memory 4 GBGDDR5

Connectivity

3 DisplayPort 1.4, 4K@60Hz

1 HDMI 2.0b, 4K@60Hz

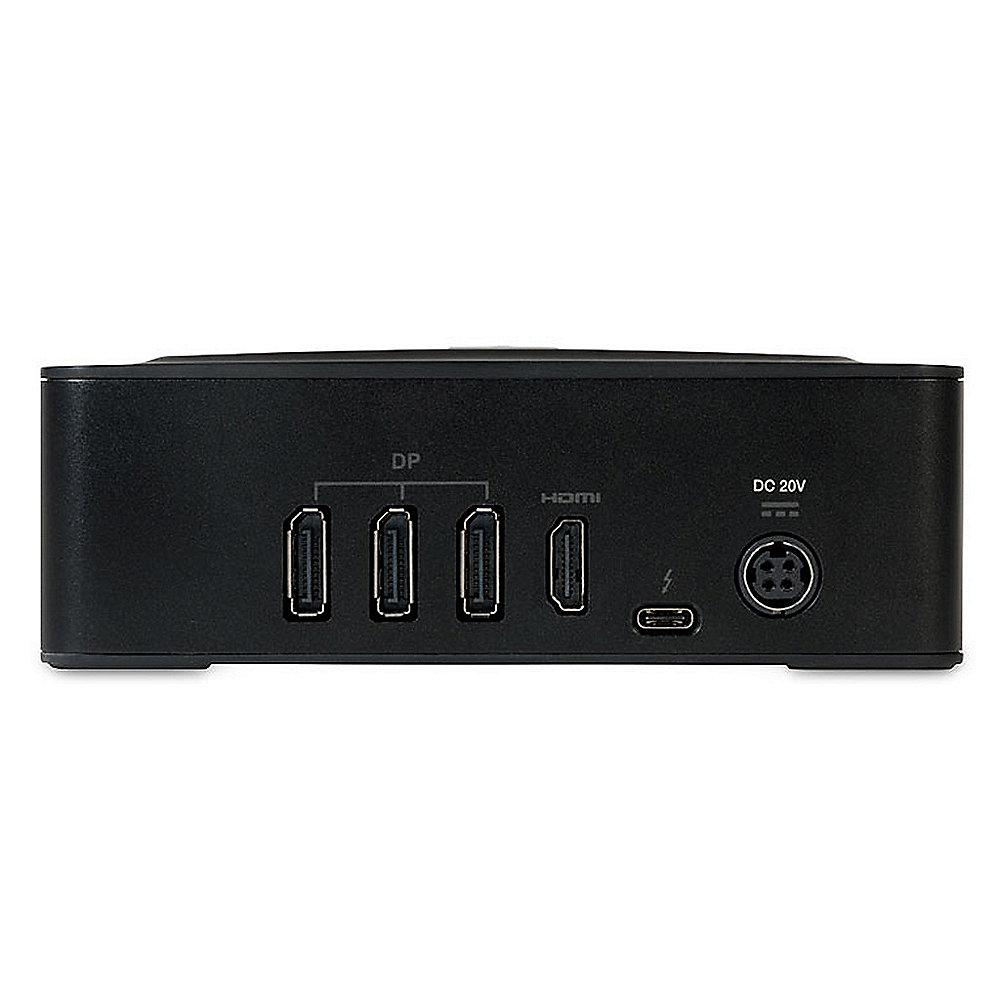

External Connectors

One Thunderbolt 3 (USB-C)

4-pin power DIN

Three DisplayPort

One HDMI

Supported Technologies

AMD Eyefinity™ Technology

AMD FreeSync™ Technology

HDCP 2.2

HDR (High Dynamic Range)

DirectX® 12

Intelligent Fan Control

OpenCL 2.0

OpenGL 4.5

Power Delivery Provides laptop charging up to 45W

Power Adapter

(GPU-RX560-TB3) Universal 160W, 100-240V AC, 50-60 Hz

Power Adapter

(GPU-RX570-TB3) Universal 220W, 100-240V AC, 50-60 Hz

Operating Temperature 0˚C to 35˚C (32˚F to 95˚F)

Dimensions (WxDxH) 6 x 5.12 x 2 in. (15.24 x 13 x 5.1 cm)

eGFX Breakaway Box Puck

Power adapter

0.5-meter Thunderbolt 3 (40Gbps) cable

Documentation

Windows Compatibility

eGFX-enabled Windows PC with a Thunderbolt 3 port

Windows 10 (64-bit Edition Version 1703 or greater)

For Windows eGPU Info click here.

Mac Compatibility

See Technical Note 2

12 Monate eingeschränkte Hardwaregarantie

Weitere Informationen zum Service, Support und zu den Garantiebedingungen des Herstellers finden Sie hier!

1 While the eGFX Breakaway Puck features a 40Gbps Thunderbolt 3 interface, some computers equipped with Thunderbolt 3 use an x2 PCIe lane implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps. Find more computer information here. Full performance also requires the use of the included Thunderbolt 3 (40Gbps) cable, or other Thunderbolt 3 (40Gbps) cables; look for the Thunderbolt icon AND the number 3 on the connector housings to identify these cables.

2 macOS High Sierra (10.13) currently offers only beta support for connection of external GPUs, and not all Thunderbolt Macs are currently supported with AMD beta GPU Thunderbolt drivers. For information regarding enabling the use of the eGFX Breakaway Puck with macOS, click here.

3 Laptops with 45–60W AC power adapters (typically 13-inch models) that support Thunderbolt 3 charging (PD - Power Delivery) may be powered and charged by the eGFX Breakaway Puck, even while gaming at 100% CPU usage. Laptops with AC power adapters rated at 87W–100W that support Thunderbolt 3 charging may be powered and charged by the Puck under modest CPU usage, but may slowly discharge using the 45W of Puck power while gaming at 100% CPU usage. Connecting bus-powered storage to a laptop will draw additional power that may affect the charging (discharging) rate. When not in use, any connected computer that supports Thunderbolt 3 charging will be charged to 100% by the Puck.
