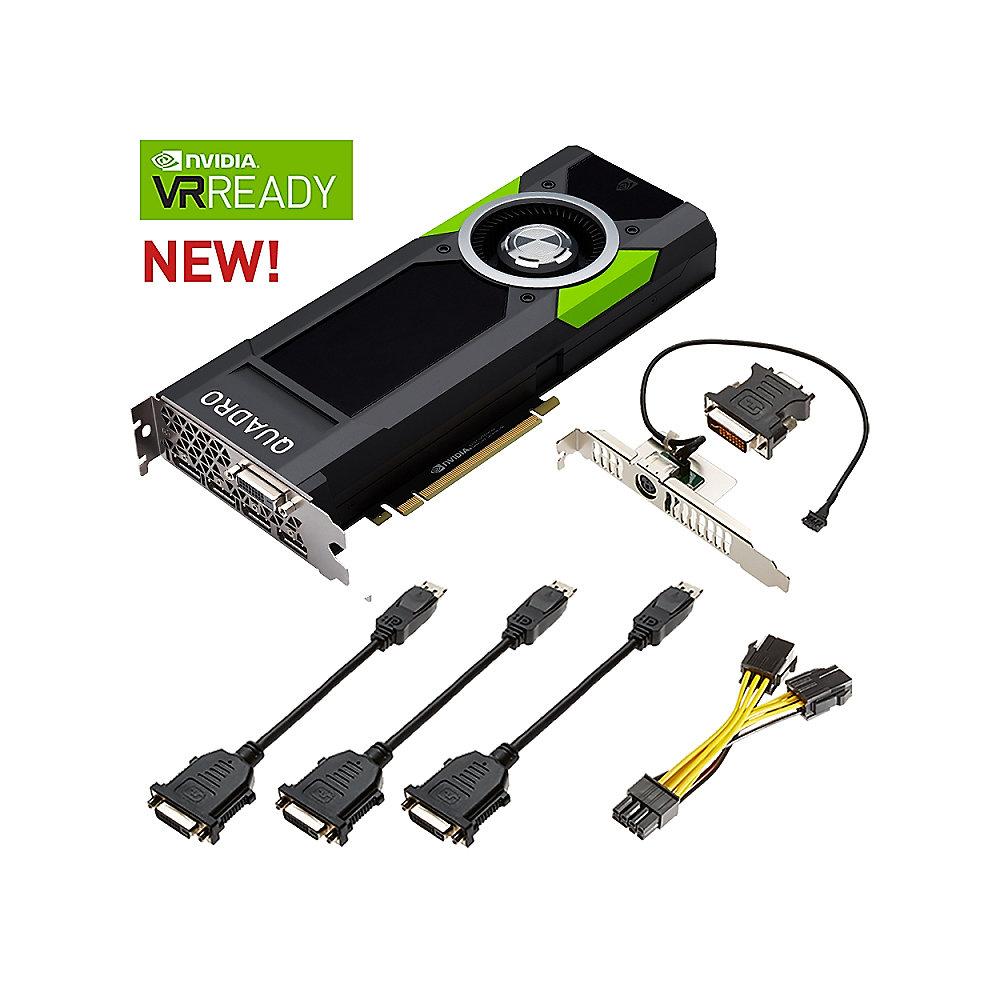

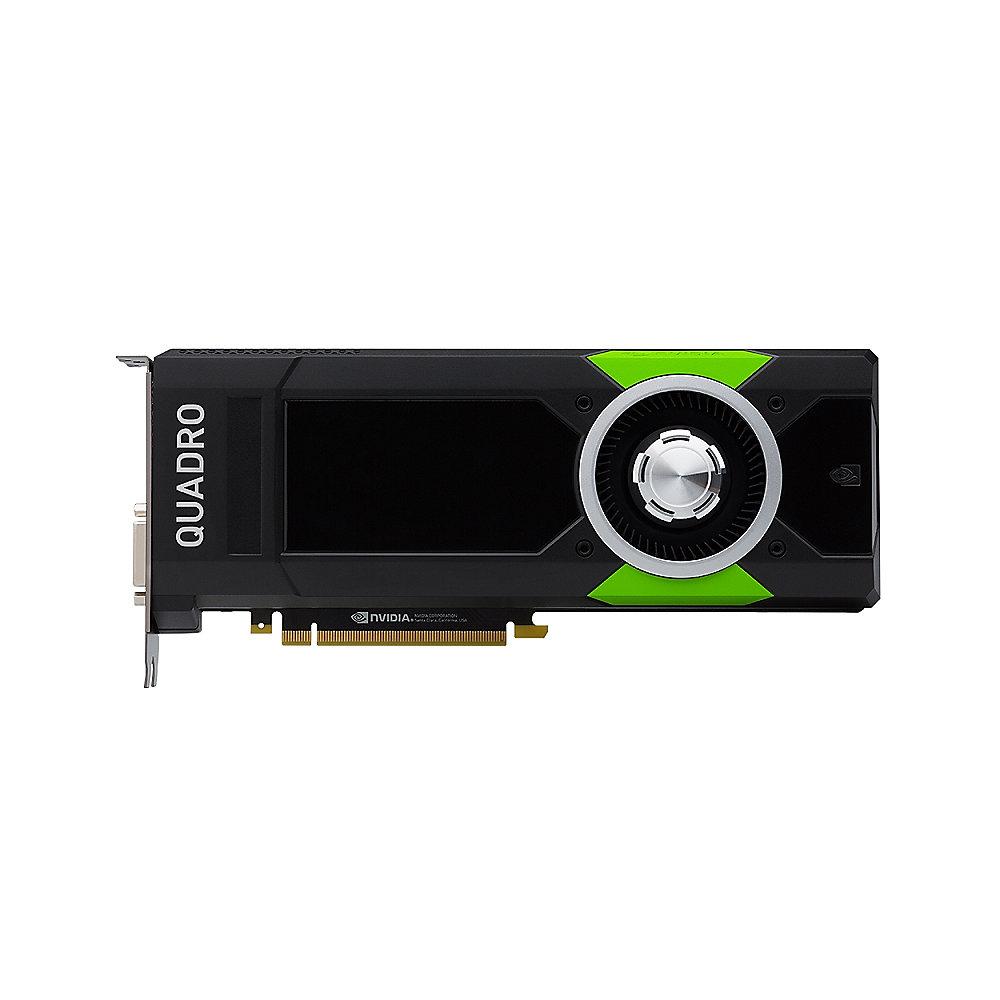

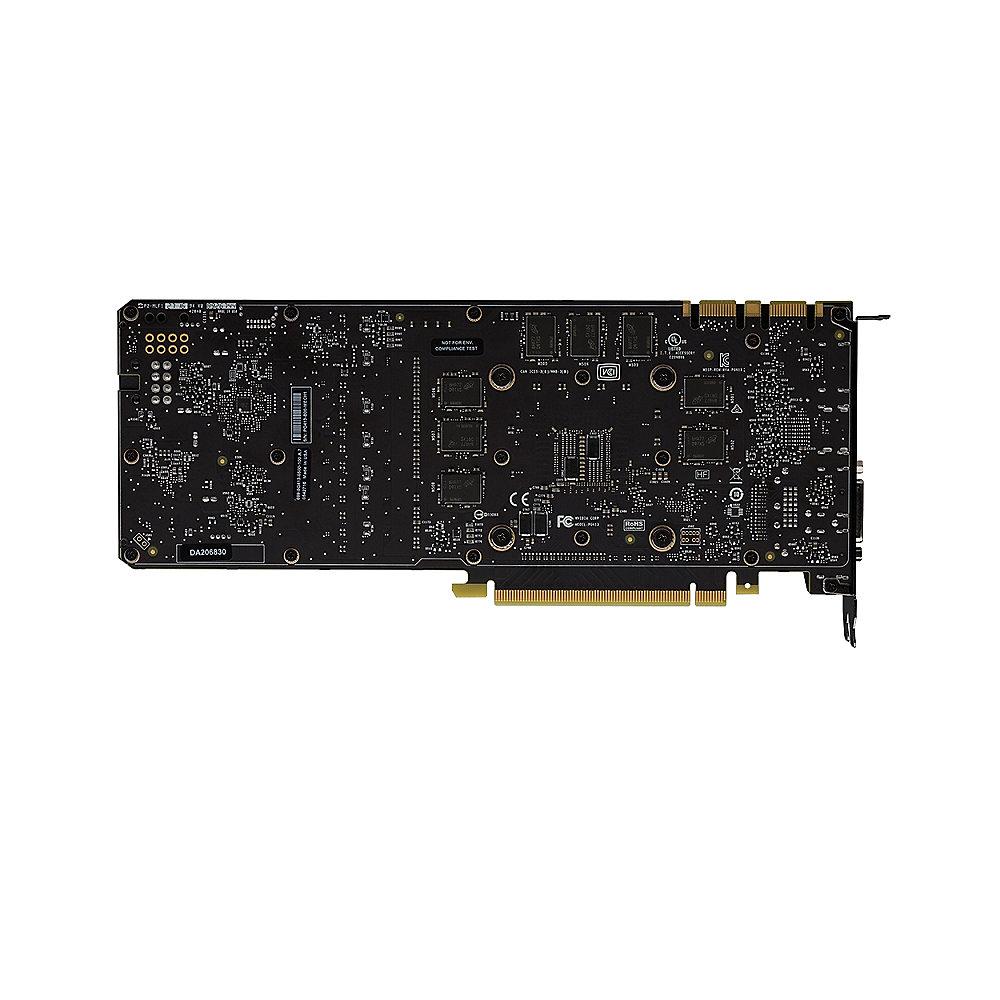

PNY NVIDIA Quadro P5000 16GB PCIe

Maximum DP 1.2 Resolution 7680 × 4320 at 30 Hz

Maximum DVI-I DL Resolution 2560 x 1600 at 60Hz

Maximum DVI-I SL Resolution 1920 x 1200 at 60Hz

Maximum VGA Resolution 2048 × 1536 at85 Hz

Scalable geometry architecture

Hardware tessellation engine

NVIDIA GigaThread engine with dual copy engines

Shader Model 5.1 (OpenGL 4.5 and DirectX 12, Vulkan 1.0)

FXAA and TXAA full scene antialiasing

Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)

Dedicated H.264 encoder

Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)

SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)

API support including: CUDA C, CUDA C , DirectCompute 5.0, OpenCL, Java, Python, and Fortran

NVIDIA Parallel Data Cache hierarchy (configurable L1 and unified L2 caches)

Error-Correction Code (ECC) memory

64KB of RAM (configurable partitioning of shared memory and L1 cache)

Dual Warp Schedules (schedules and dispatches simultaneously instructions from two independent warps)

30-bit color (10-bit per each red, green and blue channel)

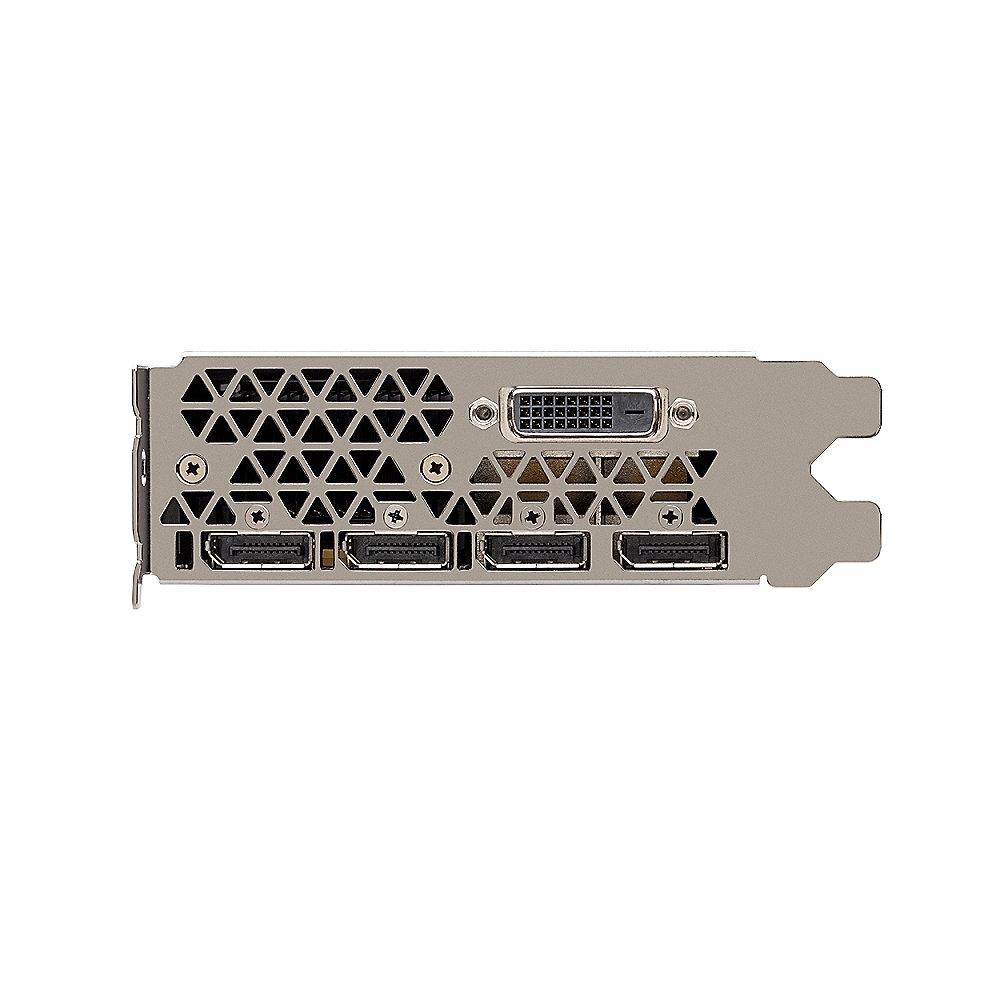

DisplayPort 1.2, HDMI 1.4, and HDCP support (HDMI requires 3rd party adapter)

10-bit internal display processing

NVIDIA 3D Vision™ technology, 3D DLP, interleaved, and other 3D stereo format support

Full OpenGL quad buffered stereo support

Underscan/overscan compensation and hardware scaling

NVIDIA NVIEW multi-display technology

NVIDIA Mosaic technology

Support for large-scale, ultra-high resolution visualization including Quadro Mosaic, Quadro Sync and Warp/Blend technologies

DisplayPort and HDMI Digital Audio •Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD ), and MPEG-2/MPEG-4 AAC

Data rates of 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176KHz, and 192KHz

Word sizes of 16-bit, 20-bit, and 24-bit
